Autosave Urinal Flush Control – Mains (Autosave UFC-M)
Completely redeveloped for 2023
Watersavers were the designers of the very first water-saving, infrared urinal flush control back in the 80s. The latest Autosave Urinal Flush Control range represents a complete overhaul of the ever-popular Autosave urinal cistern flushing control units.

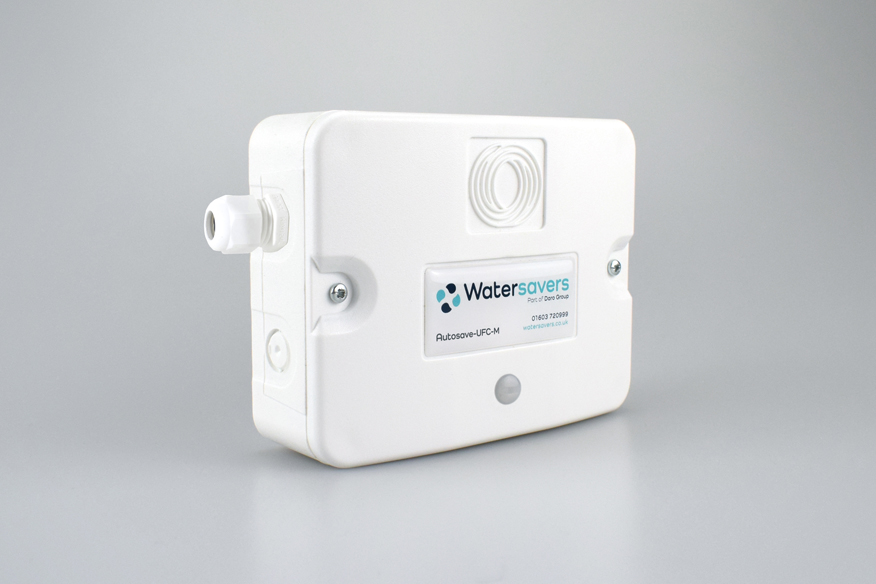

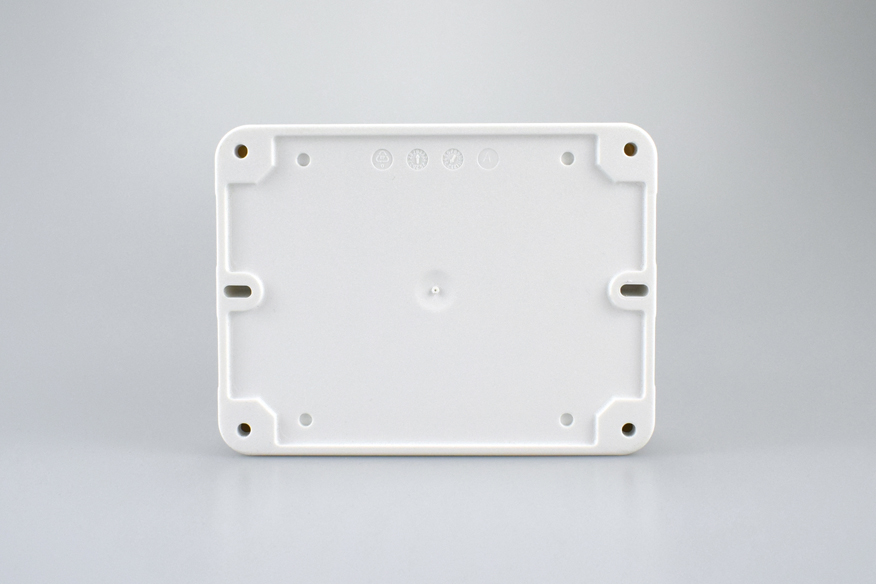

The addition of multiple cable entry points allows for versatile fitting options when installing, while the outer dimensions of the completely redesigned, low-profile enclosure are 30% smaller than previous.
Watersavers offers a range of sensor options to suit different locations and includes a comprehensive fitting kit. The Autosave UFC-M urinal flushing control saves water by flushing urinals and refilling the cistern only after use. The included remote infrared PIR sensor detects individuals in the washroom area and initiates a cistern fill and flush cycle at a preset time following detection.
A simple pushbutton setup procedure sets the cistern fill time. A programmable switch enables the installer to choose the flushing frequency and to set a hygiene flush interval for periods when the building is unoccupied.
Specification
Detection (included): PIR sensor

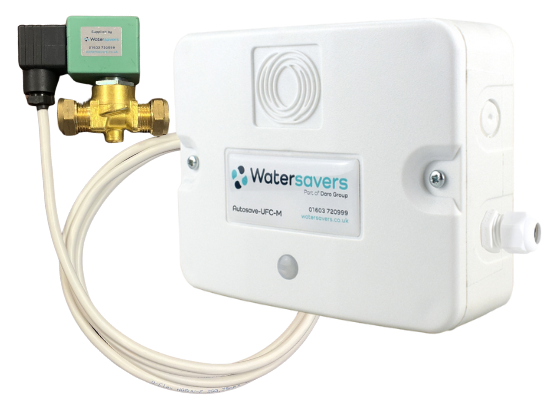

Solenoid Valve (included): Brass normally closed, 15 mm compression fittings, 2.4 mm orifice, pressure range 0 – 12 Bar with mesh filter (optional low-pressure valve for tank fed installations – Product code AUFC-M-LP)
Alternative Valve Specifications: Please contact us sales@watersavers.co.uk or call 01603 720999
Cistern Fill Time: 1 to 34 minutes – set by simple pushbutton routine
Flush Program Options: Flush delay (time from detection to actual flush) 5 – 35 minutes in 5-minute increments, hygiene flush 12 or 24 hour
Test Function: Magi-Test Wand Device (optional extra), provides instant full functional test including valve, infrared PIR sensor operation, battery status, water supply and cistern fill time
Power: 230v ac 50Hz 10VA maximum
Enclosure: Size 126 x 96 x 41mm (exc. cable glands) in white RAL 9010
Approvals: All valves used with Autosave products are WRAS approved
PRODUCT CODE: AUFC-M or AUFC-M-LP (Low-pressure valve version)
PIR Sensor
Watersavers’ Autosave UFC-M timed urinal flushing control has a built-in sensor that features a high sensitivity PIR detector with a range of 4 metres and an angle of > 100°. Please contact us if you have any special requirements.
- Sensor high sensitivity 4m 100° range
- Suitable for surface or flush mounting
- Detection LED
- White finish
Features
- 6 – 12-month typical payback period
- Save up to 80% on metered water bills
- Guaranteed for three years
- WRAS approved valve
- Simple one button setup procedure
- Programmable flush delay and 12 or 24hr hygiene flush
- Magi-Test Wand can provide a functional check (optional extra)
- Suitable for left-hand or right-hand water inlet
- Mains powered – fit & forget solution
- Fail-safe valve – closes if power is removed or fails
- No need to reset after power outage
- Manufactured in the UK
Optional Extra
Magi-Test Wand – Telescopic test wand for use with the autosave controls.
This product will typically be dispatched within 2-3 working days.
If you are looking for any of the following models-
- Watersavers Autosave M01
- Watersavers Autosave M02
- Watersavers Autosave B01
- Watersavers Autosave B02
These legacy products are now all obsolete, however we do still hold some limited spares for older generation urinal flush controls. If you have one that is in need of repair please contact info@watersavers.co.uk to see if we can help.
Click here to see our brand new Autosave range which supersedes these models.
